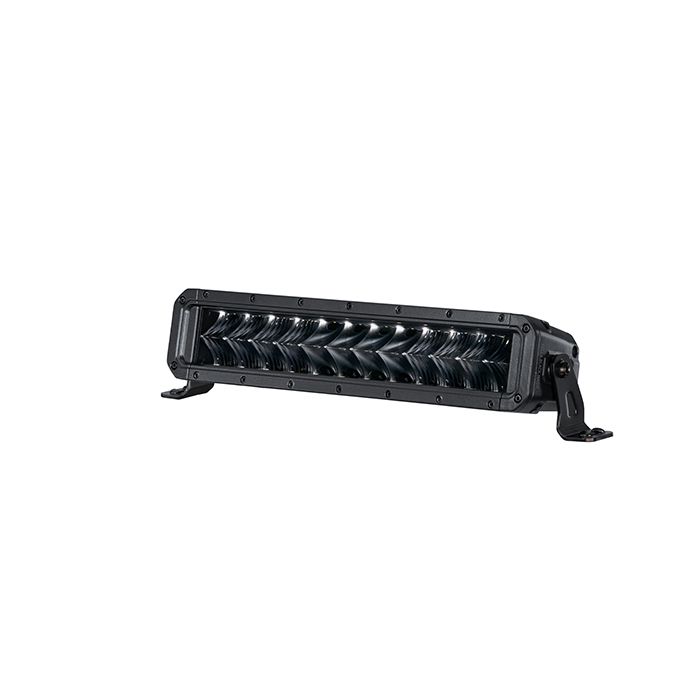

Hella 1FJ358196461 Black Magic Tough, LED Double Lightbar 13''

Hella 1FJ358196461 Black Magic Tough, LED Double Lightbar 13''

Hella Black Magic tough, LED double lightbar 13'' for off-road and auxiliary driving light applications.

LED-Spotlight - Black Magic Tough Mini Lightbar 13" - 12/24V - 3800lm - double row - Reference number: 40 - ECE - Crystal clear - Cable: 2000mm - Front

The ECE type-approved HELLA Black Magic Lightbars provide high beam (ECE-R149) with a very powerful light output of up to 9,200 effective lumens, ideal for off-road situations where you need it most and for trucks that need really good light. Both the slim and double lightbars offer a high recognition effect with their stylish and robust look in an all-black design. Typical installation locations are on the roof or roof bar, the radiator grille or bumper. The product complies with the highest dust / waterproof class. The extra-long 2 m cable makes it easy to attach to your vehicle.

Features

• OE References
• Length: 354mm - Width: 75mm - Height: 91mm - Depth: 73mm - Lamp Type: LED
• Light functions: 1 - with high beam (LED)
• Registration Type: ECE - Fulfils ECE norm.: R10/R149 - Prot.type (IP Code): IP68/IP69K
• Aluminium Housing - Housing Colour: Black - Frame Colour: Black - Lens Colour: Crystal clear
• Mounting Type: mounting/Screw Connection - Fastening Type: Vertical
• Typical Black Magic appearance including black brackets in a robust design
• Powerful light output due to modern reflector system in all 14 ECE-approved versions!
• Typical mounting locations include installation on the roof or roof bar, the radiator grille or bumper
• 13˝ Double Row Mini Lightbar, eTSD, ECE ref. 40
• IP 68, IP 69K, ECE-R10, ECE-R149, 2,000 mm cable with open ends, 5,700 Kelvin

Specifications

• Part number: 1FJ358196461
• Hella number: 1FJ 358 196-461
• Barcode (EAN): 4082300863673
• Brand: Hella
• Mounting Type: Screw Connection / mounting
• Fastening Type: Vertical
• Light Design: LED
• Lamp Type: LED
• Voltage: 12 / 24 V
• Fitting Position: Front
• Height: 91 mm
• Length: 354 mm
• Width: 75 mm
• Depth: 73 mm
• Light Function: with high beam (LED)
• Number of light functions: 1
• Protection Type per ISO 20653: IP68 / IP69K
• Luminous Flux: 3800 lm
• Colour Temperature: 5700 K
• Registration Type: ECE approved
• fulfils ECE standard: R10 / R149
• Reference number: 40
• Cable Length: 2000 mm
• Lens Colour: Crystal clear
• Frame Colour: black
• Shape: dual version
• One-sided/Double-sided: two-layer
• Housing Type: Aluminium Housing
• Housing Colour: black
• Product line: Black Magic Tough

OE References Assy./disassy. by qualified personnel required!
